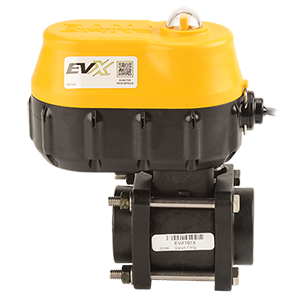

Part #: EVXR101

Description: 1" Full Port Regulating Bolted Electric Valve

Non-Standard Lead Times

Specifications

Family:	Electric Valves
Type:	Standard
Style:	Regulating
Size:	1"
Weight	4.578 lbs

Features & Benefits

• 12-volt DC operated
• Open/closed indicator
• Regulating has 4 sec response
• Open / Close verification available
• IP68 waterproof
• -20 to 150F (-29 to 65C) operating
• -67 to 221F (-55 to 105C) storage
• Actuator rated to 250,000 cycles
• Valve rated to 50,000 cycles leak-free
• 100G’s shock rating
• Additional options available including CAN/ISO BUS & Proportional Control.
• Maximum 300 psi

MATERIALS
• 316 stainless steel ball & stem
• Stainless steel hardware
• Fiberglass reinforced polypropylene
• PTFE seats
• FKM stem seals

4 WIRE REGULATING
• Red = +12V DC (Open)
• White = Ground (Open)
• Black = +12V DC (Close)
• Green = Ground (Close)

Kits & Replacements Parts

Item	Description	Part Number	Qty Per
Kit	1" EVX BOLTED VALVE REPAIR KIT FOR 3/4"-1 1/4"	EVX10200	1
Kit	HANDLE KIT FOR 3/4"-1 1/2" EVX	VP20153SH	1
	EVX ACTUATOR 4S 4W REGULATING	EP31C03410	1
	2" EVX U-Pin	EVP20001	1
	1" EVX Bolted 2-Way Valve Only	EVX101X	1

Literature & Technical Documents

EVXR101.pdf
EVXR101.stp

Videos

Banjo Quick Tips EVX® Electric Valves
